SQUARE PIPE ROLL FORMING MACHINE

Inquire Now Next Product

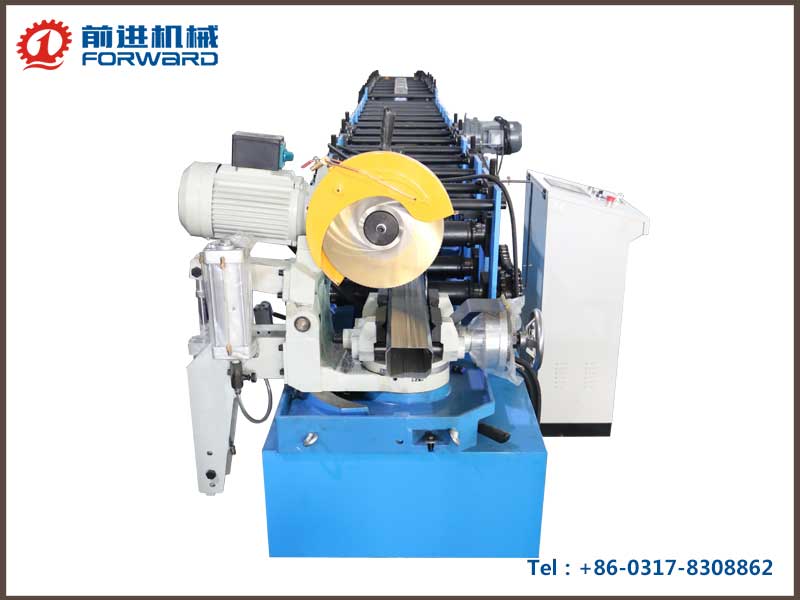

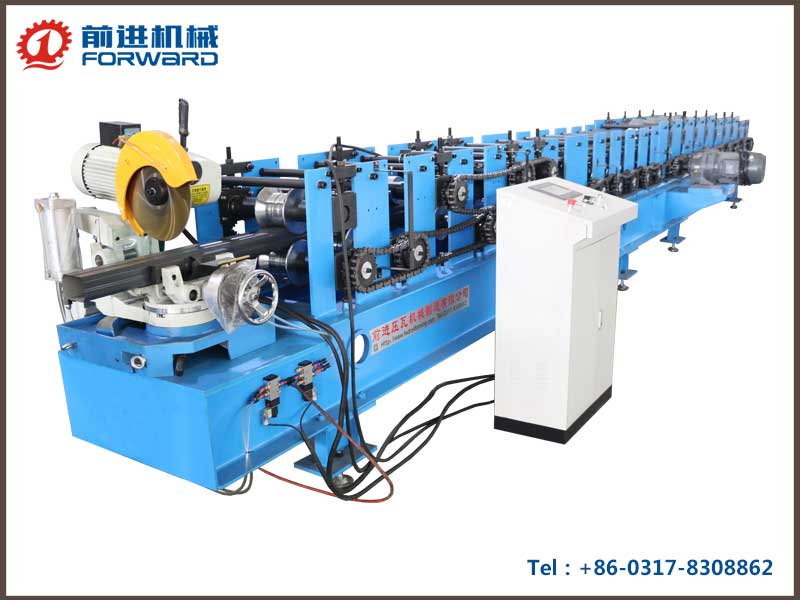

Machine Appearance

落水管-8.jpg 落水管-9.jpg

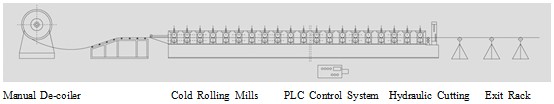

Main Components

SQUARE PIPE ROLL FORMING MACHINE

Manual Decoiler(3Ton)------------------------1Set

Feeding Platform -----------------------------1Set

Roll Forming Machine--------------------------1Set

Hydraulic Cutting Device----------------------1 Set

PLC Control System ----------------------------1Set

Receive Table (3M)-----------------------------2Sets

ROUND PIPE ROLL FORMING MACHINE

Manual Decoiler(3Ton)------------------------1Set

Feeding Platform -----------------------------1Set

Roll Forming Machine--------------------------1Set

Hydraulic Cutting Device----------------------1 Set

PLC Control System ----------------------------1Set

Receive Table (3M)-----------------------------2Sets


Technical Specification

Machine Summary

Main driving motor: 7.5KW;

Hydraulic pump motor:4.0KW;

Forming speed: 10-12m/min;

Dimension: 11500mm*1000mm*1400mm;

Weight: ≥ 7500KG

Raw Material: PPGI/GI;

Thickness: 0.4mm~0.6mm Strength:≤235MPa

Production Parameters

Forming Speed	10～12M/min(Not include the cutting time)
Roller Stations	24Units and 1assist roller station
Roller Material	High Grade 45# grade steel with forging then chromed plated 0.05mm
Shaft Material	High Grade 45# forging steel with heat treatment
Shaft Diameter	68mm
Motor/Reducer Power	7.5kW
Transmission	Sprocket and Chain
Hydraulic Pump Station	4.0kW
Pump Pressure	10～12 Mpa
Hydraulic Cutting System	stop to post and post to cut
Control Cabinet	adopt Delta PLC with frequency controlled
